Brands

Discover our world-famous partners in distribution lineup in Hong Kong

Bestsellers

Top-of-the-line testing instruments of all time

STEP 1

Siglent SHA850A

STEP 2

FOTRIC 340+

STEP 3

ACTIONPOWER PRE20

STEP 4

KIKUSUI PWR-01 Series

STEP 5

YOKOGAWA AQ6370D

STEP 6

KEITHLEY 4200A

SIGLENT SHA850A

Handheld Spectrum/ Vector Network Analyzer

Frequency Range: 9kHz – 7.5GHz

Resolution Bandwidth: 1Hz – 3MHz

Phase Noise@1GHz, 10kHz offset: -104 dBc/Hz

DANL@1GHz: -161 dBm

FOTRIC 340+

Thermal Imaging Cameras

Temperature Range: -20°C – 1550°C

IR Resolution: 640*480

Thermal Sensitivity/NETD: 30mK

Accuracy: ± 2°C or ± 2%

ACTIONPOWER PRE20

Grid Simulator

Output Voltage: 0 – 450Vrms (AC), ±636V (DC)

Output Frequency: 0.001 – 200Hz, DC

Maximum Output Current: 35A (3-ph), 105 (1-ph, DC)

Maximum Rated Power: 20kVA

KIKUSUI PWR-01 Series

DC Power Suppliers

Rated Power: 400W - 2000W

Voltage Range: 0V to 160V

Current Range: 0A to 200A

Input AC Power: 560VA - 2800VA

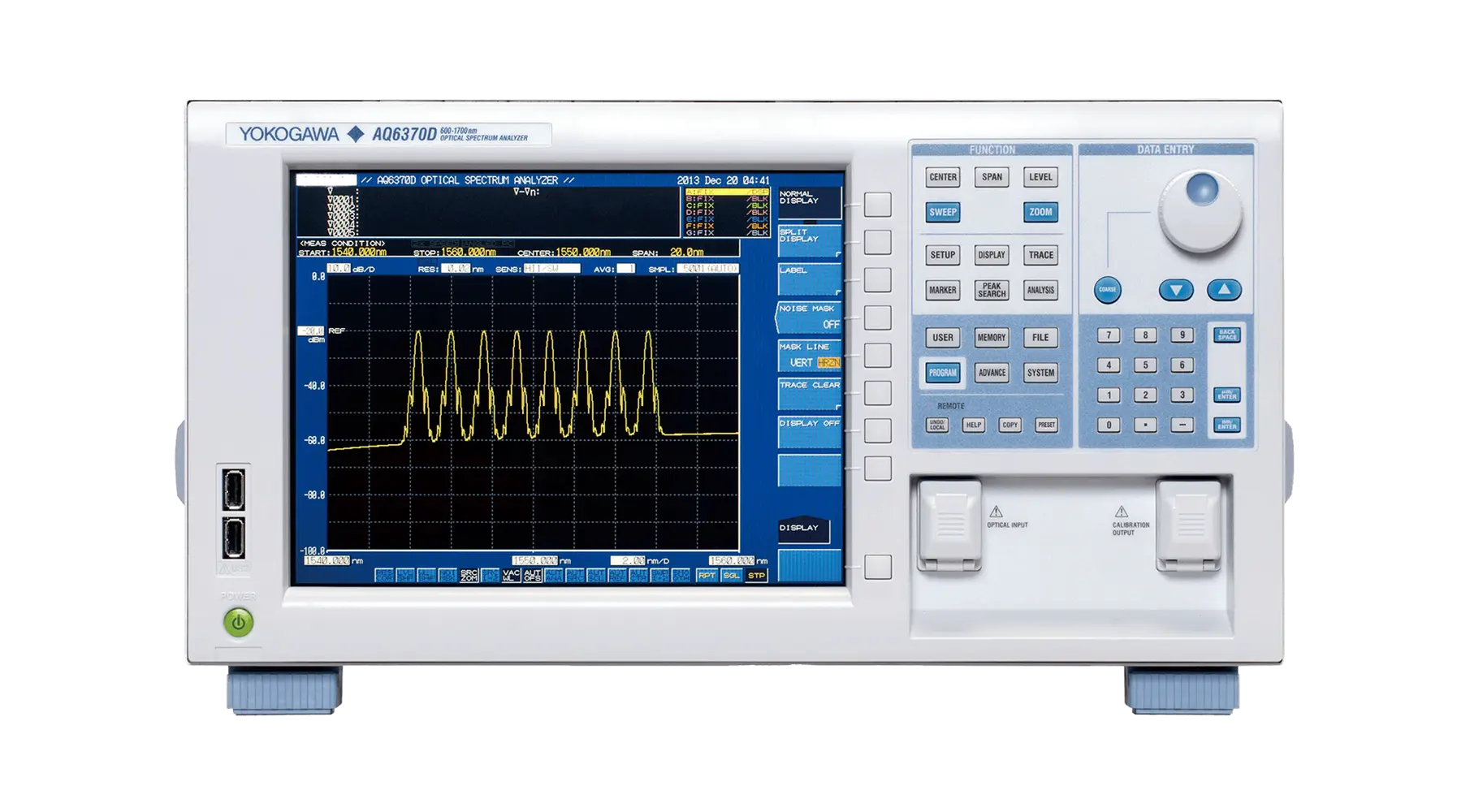

YOKOGAWA AQ6370D

Optical Spectrum Analyzer

Wavelength Range: 600 to 1700nm

Wavelength Accuracy: up to 0.01nm

Wavelength resolution: up to 0.02nm

Dynamic range: 78dB

KEITHLEY 4200A

Parameter Analyzer

DC Current-Voltage (I-V) Range: 10 aA – 1A, 0.2 µV - 210 V

Capacitance-Voltage (C-V) Range: 1 kHz - 10 MHz, ± 30V DC bias

Pulsed I-V Range: ±40 V (80 V p-p), ±800 mA, 200 MSa/sec, 5 ns sampling rate

Slots for SMUs: 9

Find your ideal equipment streamlined with clear classification

Industry

Successful cases of various industrial applications

STEP 1

Education and Research

STEP 2

Automotive

STEP 3

Railway

STEP 4

Semiconductor

STEP 5

Renewable Energy

STEP 6

Telecommunication

STEP 7

Electrical

Education and Research

CUHK – 75 Lab Setups enhance practical learning
In need of lab setups to provide hands-on learning experiences idea testing and coursework reinforcement

Solution：
Siglent high cost-performance lab setup including
－ power supplies - presets of 3.3V and 5V outputs useful for Arduino projects
－ signal generators - pre-installed with 196 types of built-in waveforms
－ digital multimeters
More

Automotive

HKPC – Automotive EMF Measurement System
Complied with GBT 37130 : Measurement methods for electromagnetic fields of automotive with regard to human exposure

Solution：
－ 7 x Wavecontrol SMP3 : Field Strength Meter
－ 7 x Wavecontrol WP400C : E&H Field Probe
More

Railway

MTR – Train Vibration Simulation and Measurement System
Turnkey solution to simulate the vibration of train and measure the condition of bogie components on train

Solution：
－ IDEX BF-50UT : 3-axis Vibration Tester
－ Yokogawa DL950 & IS8002 : ScopeCorder & Integrated Software Platform
－ Kikusui PCR2000MA : Compact AC Power Supply
－ Fluke 1777 : Three-Phase Power Quality Analyzers
More

Semiconductor

CUHK – Wafer Measurement System
Probe Station works with parameter analyzer to probe and analyze precise measurements data in solid state laboratory

Solution：
－ Keithley 4200A-SCS : Parameter Analyzer
－ Everbeing EB-4 : 4-inch Probe Station
－ Motic PSM1000 : Microscope
－ Shielding Box
More

Renewable Energy

Photovoltaic power generation systems measurement
Precise measurement of power conversion efficiency, high voltage, and large current.

Solution：
－ YOKOGAWA power analyzers WT5000 : Large current measurement up to 2000 A
－ WTViewerE application software allowing waveform acquisition at up to 2 MS/s for data analysis
More

Telecommunication

test data
test data test data test data test data

Solution：
－ test data
－ test data
－ test data
Highlights：
－ test data
－ test data
－ test data
More

Electrical

Identifying Hidden Hazards in Power Distribution Cabinet Inspection
Unexpected breakdowns of electrical connections may lead to production loss, unplanned downtime, and fire hazards. Overheating often occurs before failure, making early detection challenging with the naked eye.

Solution：
－ FOTRIC 340/320 series handheld thermal cameras : Allowing early detection of stressed components and overheated electrical connection
