Key Specifications
READING SOLUTION
6 1/2 digitBASIC ACCURACY
25ppmVOLTAGE MEASUREMENT RANGE
100mV - 1000V(DC), 100mV - 750V(AC)CURRENT MEASUREMENT RANGE
10 μA - 10A(DC), 100 µA -10A (AC)Category
Features
All-in-one solution with 15 built-in measurements

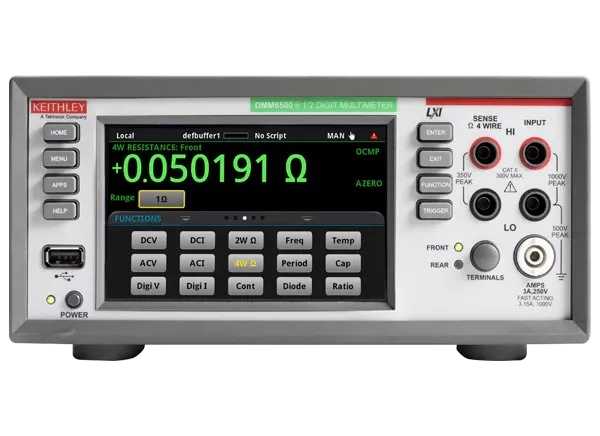

Get 15 built-in measurement functions, including digitizing, capacitance, and temperature. Make low current and low resistance measurements on low-power devices with both high resolution and great accuracy. Capture transient signals with the built-in 16-bit digitizer. See two measurements simultaneously to maximize test data. The DMM6500 6.5-digit multimeter eliminates the need for additional instruments.
Turn raw data into insights quickly with industry-leading touchscreen
Get instant measurement insight, such as capturing transient signals and seeing data trends and statistics right on the touchscreen, so you can analyze your data faster and eliminate making additional measurements.
Real-time cloud-based monitoring and data visualizations
- Monitor and log data streams directly from the DMM6500 in real-time and from anywhere - with no PC-in-the-middle required.
- Get e-Mail and text alerts using triggers based on measurement thresholds and other mathematical rules.
- Access, visualize, archive, share, transform, and analyze current and historical data from anywhere - no install required.
- Create dashboards for standardization, repeatability, and readability.
- Overlay, time-dilate, and compare data sets across test runs.
Expand to 10 measurement channels
If you need to look at more devices simultaneously or make multi-point measurements on a device, you can select an optional scan card that gives you up to 10 measurement channels without needing to buy more instruments.
Model
| Model | Resolution | DC voltage measurement range |
AC voltage measurement range |
DC current measurement range |
AC current measurement range |
Basic Accuracy |
|---|---|---|---|---|---|---|
| DMM6500 | 6.5 | 100mV-1000V | 100mV-750V | 10 μA - 10A | 100 µA -10A | 0.0025 + 0.0006 |
SLIDE TO VIEW MORESeries models
DMM6500
