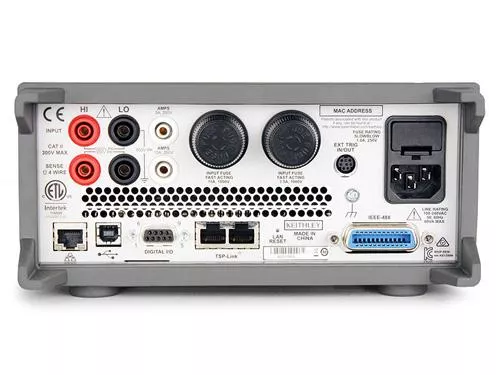

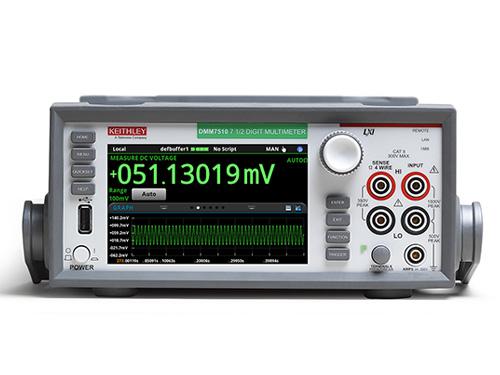

Keithley DMM7510
Description：
Key Specifications
READING SOLUTION
7 1/2 digitBASIC ACCURACY
15ppmVOLTAGE MEASUREMENT RANGE
100mV - 1000V(DC), 100mV - 750V(AC)CURRENT MEASUREMENT RANGE
10 μA - 10A(DC), 1mA -10A (AC)Category
Features
01
Wide dynamic range for drain current consumption profiling of IoT products
The DMM7510's digitizer can measure the current drain in all the IoT device’s operating states. Capture µA sleep mode currents and transmit currents up to 1A with the combination of sensitive and fast current measurements from the high-resolution, high-speed digitizer.
Highlights
- Sample current drain wave shapes at rates up to 1Msample/s
- Sample over 5 decades with the digitizer's 18-bit resolution
02
Measure low signals with high sensitivity
High sensitivity enables the DMM7510 to measure very low levels of voltage, current, and resistance, and detect small changes and signal drift.
Highlights
- DC voltage sensitivity: 10 nV
- Current sensitivity: 1 pA
- Resistance sensitivity: 0.1 µΩ
| Model | Resolution | DC voltage measurement range |
AC voltage measurement range |
DC current measurement range |
AC current measurement range |
|---|---|---|---|---|---|
| DMM7510 | 7.5 | 100mV-1000V | 100mV-750V | 10 μA - 10A | 1mA - 10A |
SLIDE TO VIEW MORESeries models
DMM7510
