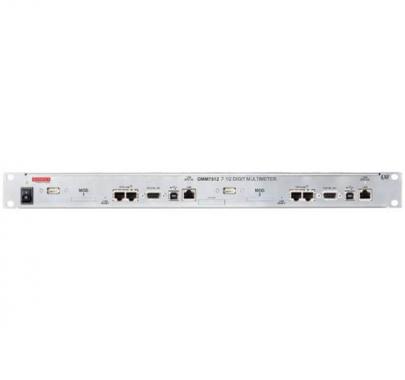

Keithley DMM7512
Description：
Key Specifications
READING SOLUTION
7 1/2 digitBASIC ACCURACY
15ppmVOLTAGE MEASUREMENT RANGE
100mV - 1000V(DC), 100mV - 750V(AC)CURRENT MEASUREMENT RANGE
10 μA - 10A(DC), 1mA -10A (AC)Category
Features
01
Significantly Reduce Test Time
The two DMMs in each DMM7512 have built-in intelligence to execute test programs without PC interaction using its Test Script Processor (TSP®) Technology. In addition, each DMM features a TSP-Link® hardware interface so that one instrument can control other instruments in a master-subordinate configuration.
Highlights
- Control up to 32 instruments in a TSP-Link test system
- Synchronize measurements with a latency under 500 ns
- Eliminate time-consuming communications between the instruments and a PC
- DMM7512 TSP code is compatible with DMM7510 TSP code
02
Two DMM7510s built into one compact enclosure
The DMM7512 consists of two, independent, identical, 7½-digit DMM7510 digital multimeters (DMMs) with a few less measurement functions. The two DMM7512 DMMs have the same accuracy, sensitivity, and speed as the DMM7510 so that the DMM7512 can be seamlessly integrated into a test system that previously used DMM7510s.
Highlights
- Sample complex waveforms with the 1Msample/s, 18-bit digitizer; store up to 27.5 million readings
- Test components used in low-power circuits with 0.1 µΩ and 1 pA sensitivities
- Maximize test quality with high test uncertainty ratios using 1-year accuracy DC volts as good as 14 ppm
- Built-in Test Script Processor (TSP®) enables test sequence execution without controller interaction, reducing test time and communication overhead, while availing the controller for other tasks
| Model | Resolution | DC voltage measurement range |
AC voltage measurement range |
DC current measurement range |
AC current measurement range |
|---|---|---|---|---|---|
| DMM7512 | 7.5 | 100mV-1000V | 100mV-750V | 10 μA - 10A | 1mA - 10A |
