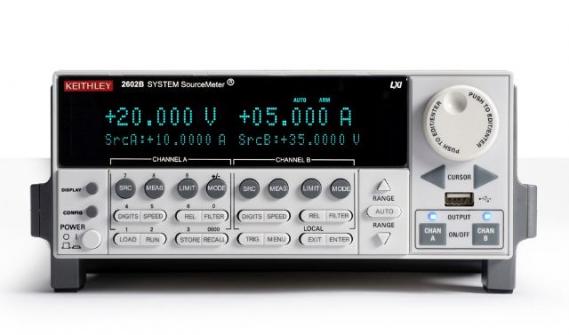

Keithley 2600B
Description：
Key Specifications
MAXIMUM POWER
200WMAX CURRENT SOURCE/MEASURE RANGE
10A
MAX VOLTAGE SOURCE/MEASURE RANGE
40V, 200VMEASUREMENT RESOLUTION (CURRENT/VOLTAGE)
0.1fA - 100fA / 100nVFeatures
01
Complete production test without sacrificing footprint
Meet all your production test needs with two completely isolated channels of wide dynamic source and measure within the same footprint. Each 40 W channel provides a 6½-digit precision resolution source and measures from 10 A pulse to 0.1 fA and 200 V to 100 nV at less than 100 µs pulse width and within 0.1% of the settled value.
Highlights
- Up to 2 channels in the same footprint
- The widest dynamic range of voltage and current
- Highly accurate 100 µs pulse expanding DC production test capabilities
02
Best low current performance for production
The 2635B and 2636B SMUs provide 0.1 fA, 10-16 resolution on the lowest 100 pA range, reducing ultra-low level sample characterization worries and assuring production success.
Highlights

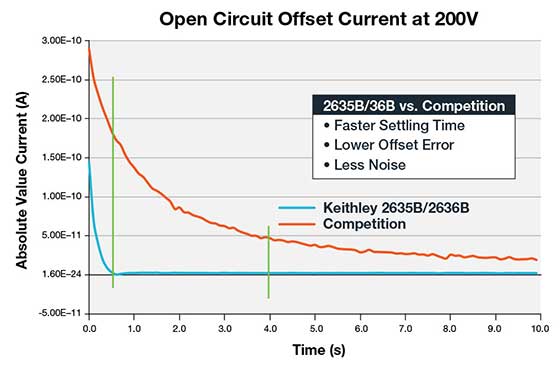

- 7x faster settling time on the lowest current range
- Best low current resolution on the market
- Direct triax connection simplifies setup
| Model | Channels | Power | Measurement Resolution (Current/Voltage) |
Max Voltage Source/ Mesure Range |
Max Current Source/ Measure Range |
|---|---|---|---|---|---|
| 2601B | 1 | 200W | 100fA/100nV | 40V | 10A |
| 2601B | 1 | 200W | 100fA/100nV | 200V | 10A |
| 2604B | 2 | 200W | 100fA/100nV | 40V | 10A |
| 2614B | 2 | 200W | 100fA/100nV | 200V | 10A |
| 2602B | 2 | 200W | 100fA/100nV | 40V | 10A |
| 2612B | 2 | 200W | 100fA/100nV | 200V | 10A |
| 2635B | 1 | 200W | 0.1fA/100nV | 200V | 10A |
| 2634B | 2 | 200W | 1fA/100nV | 200V | 10A |
| 2636B | 2 | 200W | 0.1fA/100nV | 200V | 10A |
SLIDE TO VIEW MORESeries models
2600B
