Key Specifications
MAXIMUM POWER
200W, 100W PulseMAX CURRENT SOURCE/MEASURE RANGE
10AMAX VOLTAGE SOURCE/MEASURE RANGE
40VMEASUREMENT RESOLUTION (CURRENT/VOLTAGE)
100 fA / 100 nVCategory
Features
Incorporates the functionality of a fast pulser and SMU in one instrument

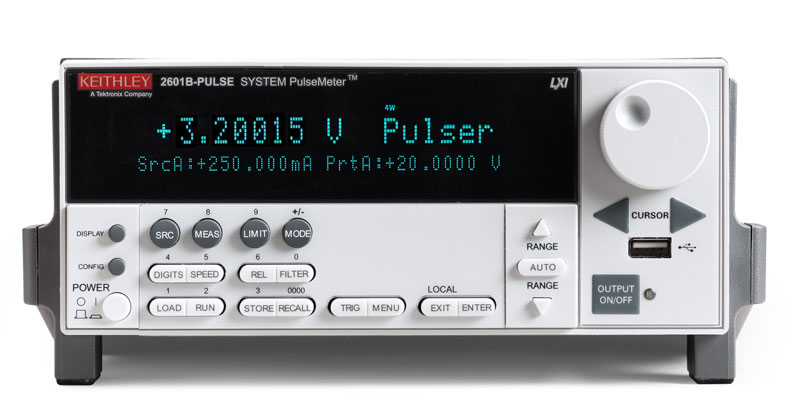

The 2601B-PULSE adds pulser functionality to the superior measurement integrity, synchronization, speed, and accuracy you know from the industry-leading Keithley 2601B SMU instrument.
Pulser 0.05% basic measure accuracy with 1 MS/s digitizing
SMU 100 nA low current range with 100 fA sensitivity
Rear panel BNC connections for quick cable setup.
Embedded scripting and connectivity for unmatched production throughput

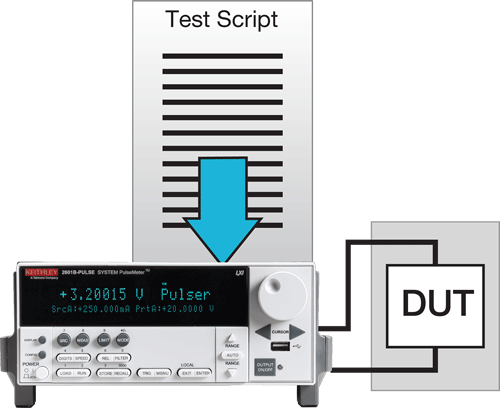

Test Script Processor (TSP®) technology embeds and executes complete test programs inside the SMU instrument to deliver industry-best performance. TSP-Link® technology enables the expansion of up to 32 TSP-Link nodes for creating high-speed, SMU-per-pin parallel testing without a mainframe.
- Eliminates time-consuming bus communications to and from the PC
- Advanced data processing and flow control
- Connect up to 32 TSP-Link nodes
- Reconfigure easily as test requirements change
| Model | Channels | Max Current Source/ Measure Range |
Max Voltage Source/ Measure Range |
Measurement Resolution (Current/Voltage) |
Power |
|---|---|---|---|---|---|
| 2601B-PULSE | 1 | 10A | 40V | 100fA/100nV | Pulse: 100W instantaneous SMU: 200W instantaneous |
SLIDE TO VIEW MORESeries models
2601B-PULSE
